30 KG/BATCH COFFEE ROASTER MACHINE
Class | Industrial Roaster |
Minimum Batch Capacity | 10.000 gr |
Maximum Batch Capacity | 30.000 gr |
Heating Source | LPG |
Burner | Indirect Jet Burner 70-174kW |
Drum | Cast Iron with Special Treatment |
Drum Speed Control | Digital Input Value: 0-100% |
Airflow Speed Control | Digital Input Value: 0-100% |
Burner Control System | Input Value 0-10 / 0%-100% Looping Value Geometric Burner Valve 180° Servo Value Available |
Machine Dimension | 3.100 x 3.370 x 2.950 mm |
Power Source | 11.000 Watt / 380 Volt |
Master Control | Industrial PLC with 7" Touch screen |
Beans Feeder | Included |
Destoner | Included |
30.000 gr/batch
Indirect Jet Burner 70-174kW
11.000 W / 380 V
8-15 Min
3.100 x 3.370 x 2.950 mm
Solid drum type, with special alloy cast iron. Additional treatment excellent heating and keep cleanest aroma and zero contaminate.

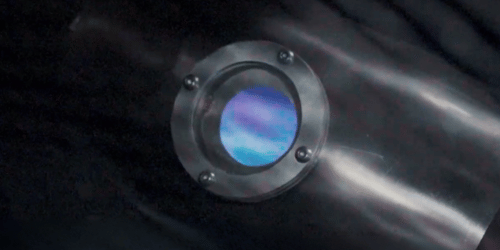

Blue-flame gas jet burner delivers strong and stable heat for consistent roasting performance. Its focused flame helps maintain steady thermal energy throughout the roasting process.
Driver motor one line to drum roasting High efficiency, low maintenance, and low friction and silent run. Support by SUMITOMO DRIVES TECHNOLOGIES-Japan.

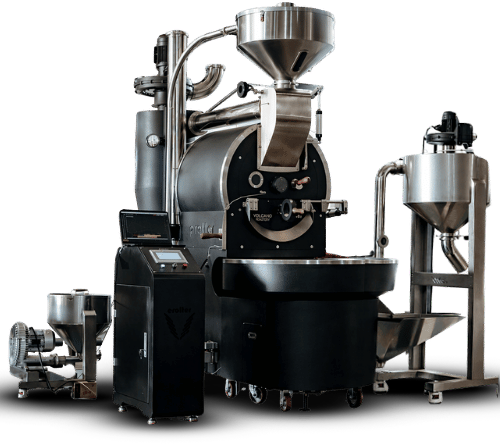

Pratter 30.0 is designed for industrial-scale coffee roasting operations that require larger production capacity, efficient workflow, and more stable process control.

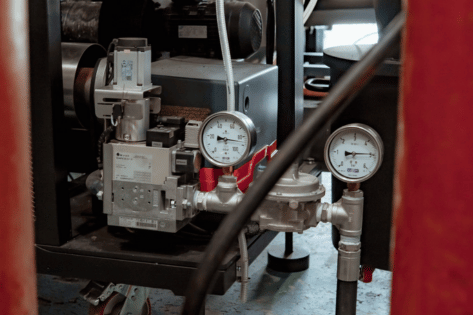

This machine uses an indirect jet burner system to deliver strong, stable, and controlled heat throughout the roasting process. The heating system helps maintain consistent thermal performance, making it suitable for continuous production and larger roasting volumes.

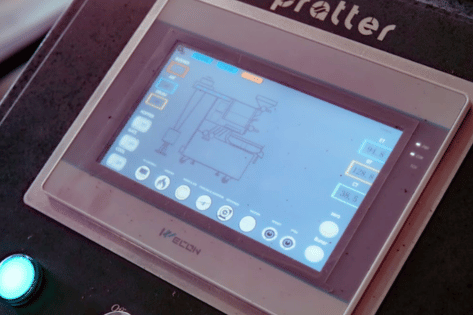

Supported by Industrial PLC Control, Pratter 30.0 allows operators to manage and monitor key roasting parameters with better precision. This system helps improve process consistency, especially for repeated production from batch to batch.
To support industrial operation, Pratter 30.0 is equipped with:
With its large capacity, stable heating system, industrial PLC control, safety sprayer, beans loader, and destoner, Pratter 30.0 is a practical roasting solution for large industrial coffee roasteries.
